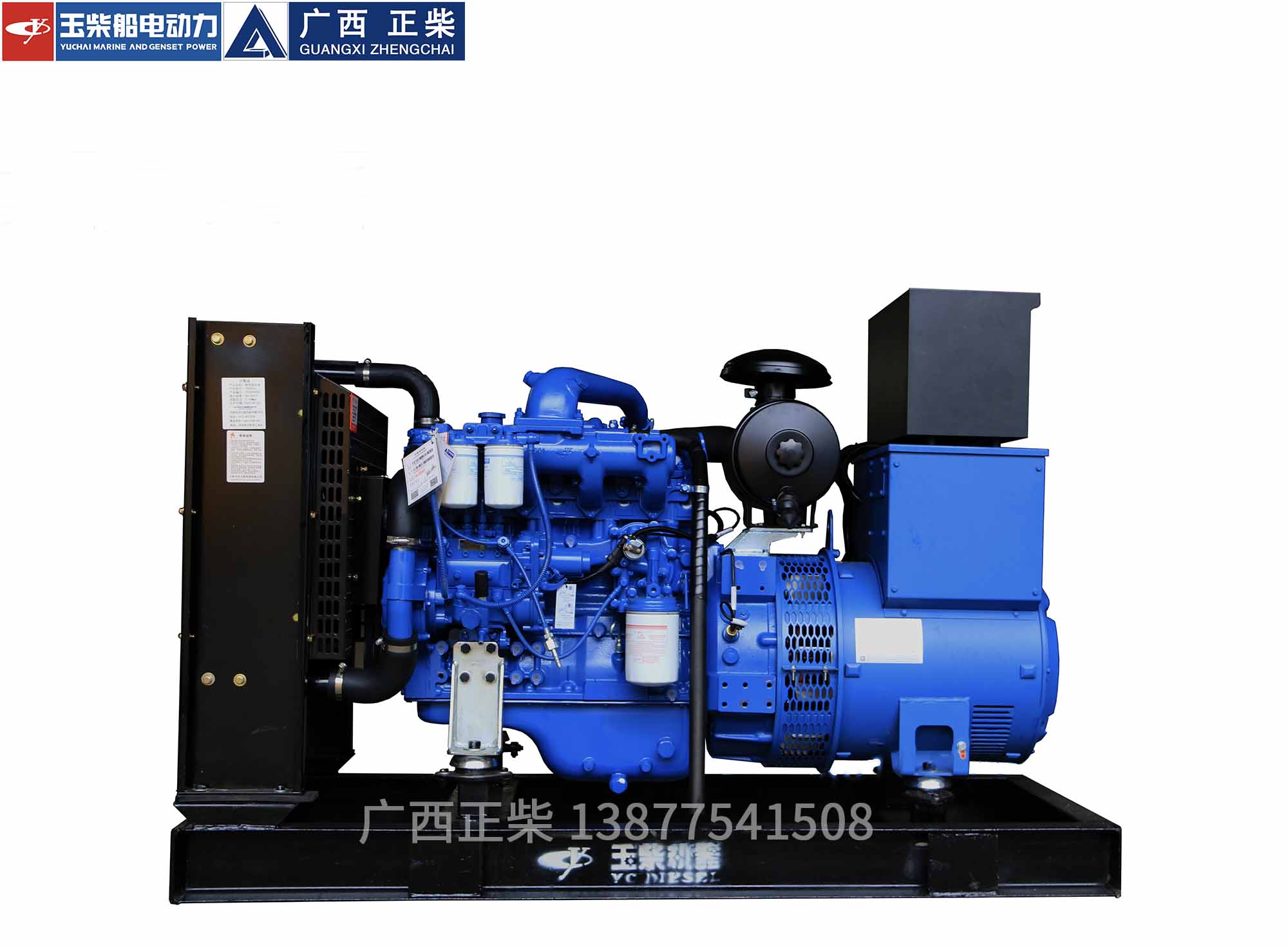

Diesel generator set - basic parameters
Model: ZC40GF1
Unit power: 30(kw)
Standby power: 33(kw)
Output current: 54(A)
Full load fuel consumption: 5 (L/H)
Weight: 630(kg)
Dimensions: 1350*600*920(mm)
Output voltage: 400/230(V)

Diesel engine - basic parameters
Model: YCDV254FHZ-50
Rated power: 36.8(kw)
Standby power: 40.5(kw)
Emission standard: National IV
Manufacturer: Yuchai Marine Electric
Intake method: turbocharged intercooler
Number of cylinders - stroke x cylinder diameter: 4-100x89 (mm)
Speed ​​control mode: electronically controlled high-pressure common rail (R/MIN)
Displacement: 2.5 (L)
Rated fuel consumption: 200 (g/Kwh)
Cooling method: closed water circulation forced air cooling
Speed: 1500 (rpm)
Exhaust temperature: 405/410©
Compression ratio: 17.5:1
Intake resistance: 2.5 (Kpa)
Noise: ≤107
Fuel consumption: <205 (g/kw.h)
Cylinder arrangement: L type
Starting method: electric start

Controller-Basic parameters
Brand/Origin: Deco/Anhui                             Motor model: Deco 30
Protection level: IP23                                 Insulation level: H level
Rated power: 30KW                               Excitation mode: brushless self-excitation
Voltage control method: AVR (automatic voltage regulator)       Winding temperature rise: <125K (resistance method)
Steady-state voltage regulation rate: ≤±1%                        Voltage adjustment range: >±10%Un
Overload capacity: 100%/1h                             Overcurrent capacity: 150%/2min
Recovery time: ≤1s     …
