Yuchai YC16VC4500, 4900 power generation application cases
2024/2/23
>
High-strength cylinder block, alloy forged steel crankshaft, alloy steel connecting rod, internal cooling oil channel piston and high and low temperature water cooling system effectively extend the service life of the engine, and has a lighter and more compact structure among similar products; CAE analysis and patented technology vibration reduction and noise reduction design, the noise value is lower than that of similar domestic products; in line with the national non-road T3 standard;
|

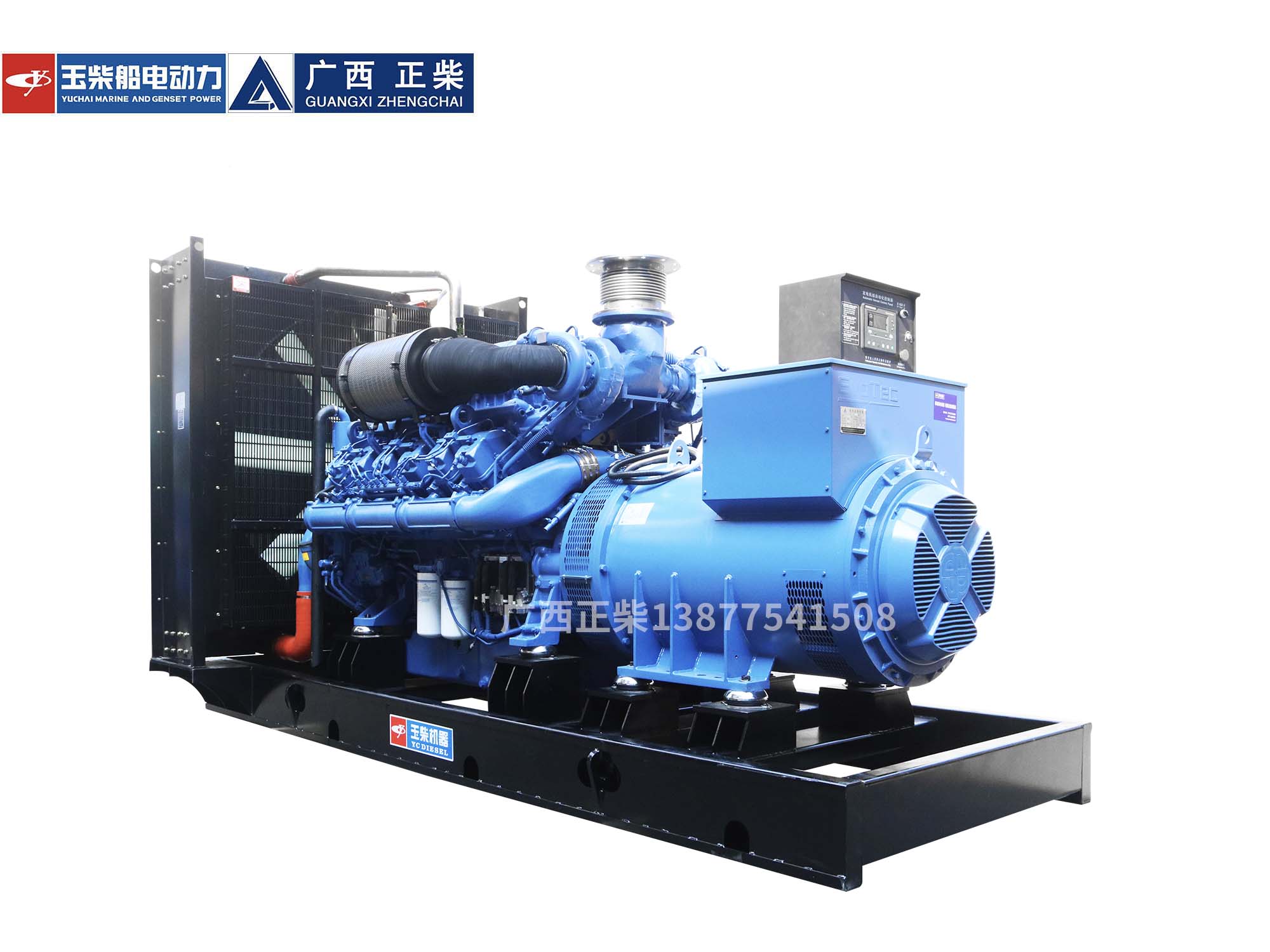

ZC1610GFG1 Yuchai generator set technical parameters
|
|||
|
Unit power (kW)
|
1100
|
Unit capacity (kVA)
|
1610
|
|
Rated current
|
1985
|
Power factor
|
COSΦ=0.8 (hysteresis)
|
|
Rated voltage (V)
|
400/230
|
Rated frequency
|
50HZ
|
|
Rated speed
|
1500
|
Wiring type
|
Star type (Y three-phase four-wire, 12-wire)
|
|
Dimensions
|
4460*2115*2500
|
Weight
|
9200kg
|
|
Noise
|
≤103dB (A)
|
Unit type
|
Open frame
|
|
Diesel engine technical parameters
|
|||
|
Model
|
YC12VTD1830-D30
|
Origin
|
Yulin, Guangxi
|
|
Type
|
Vertical, inline, water-cooled, four-stroke
|
Intake method
|
Supercharged intercooler
|
|
Cylinder-bore x stroke
|
12-152X180
|
Total displacement (L)
|
39.2
|
|
Generator technical parameters
|
|||
|
Brand/Origin
|
Deco/Anhui
|
Motor model
|
Deco 1100
|
|
Protection level
|
IP23
|
Insulation level
|
H level
|
|
Rated power
|
1100KW
|
Voltage control mode
|
AVR (Automatic Voltage Regulator)
|
|
Excitation mode
|
Brushless self-excitation
|
Winding temperature rise
|
＜125K (resistance method)
|
|
Steady-state voltage regulation rate
|
≤±1%
|
Voltage adjustment range
|
＞±10%Un
|
|
Overload capacity
|
100%/1h
|
Overcurrent capacity
|
150%/2min
|
|
Recovery time
|
≤1s
|
Fluctuation rate
|
≤±1%
|
|
Zhongzhi control panel
|
|||
|
Function description
|
Self-start, self-stop, self-switching Control panel AMF LCD control panel, display voltage, current, frequency, water temperature, oil pressure. Low oil pressure, high water temperature, overspeed, overload protection function of the generator set Guangxi Zhengchai Generator Set Manufacturing Co., Ltd. www.gxylzc.com
|
||
