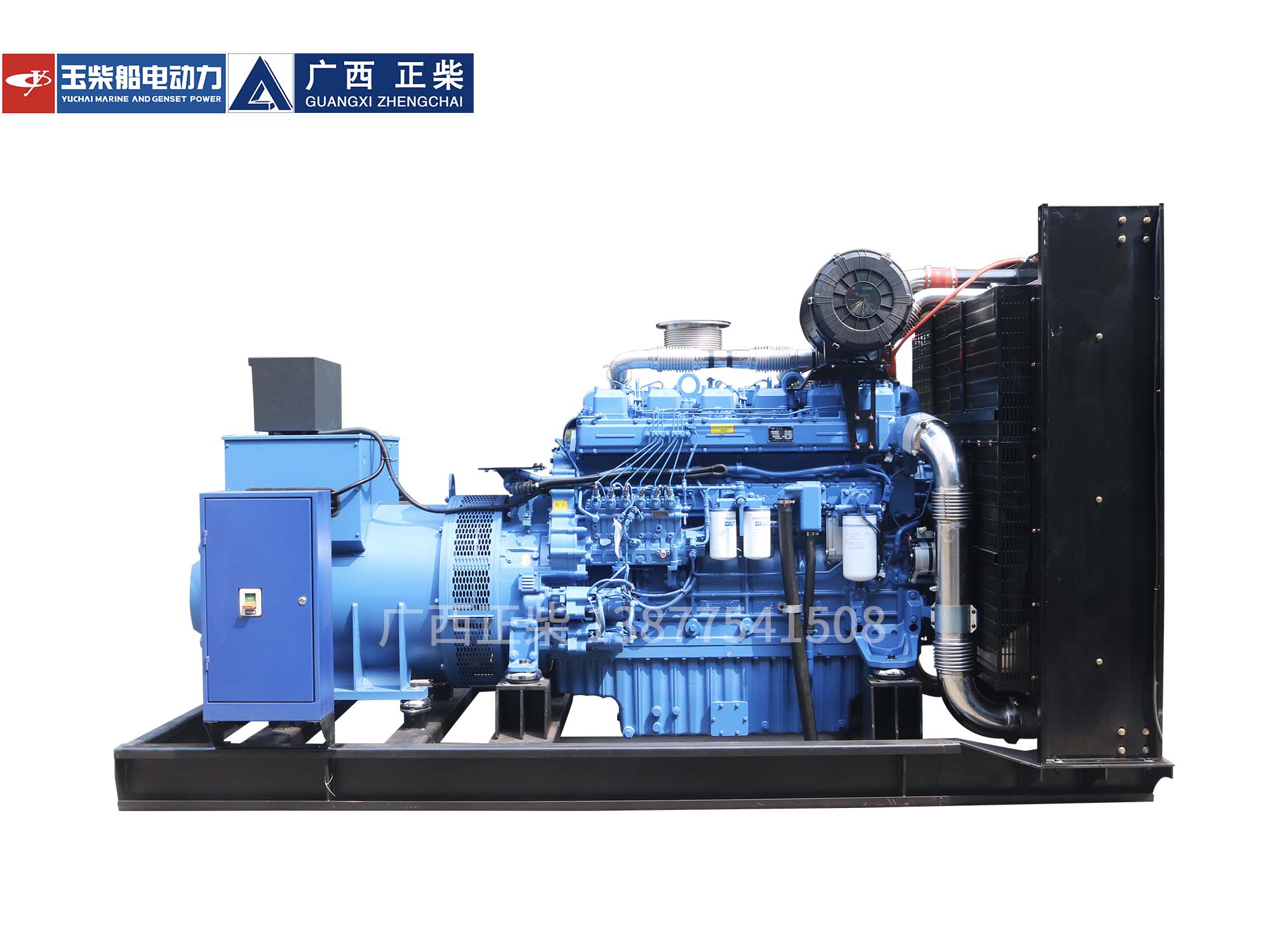

The unit uses the high-quality diesel engine YC6TH1320-D31 produced by Yuchai as the power source, and uses the generator set matched with the Delco motor. It has the characteristics of compact structure, convenient operation, stable operation, low fuel consumption, low emission, low noise, etc. All performance indicators meet the requirements of the national standard GB/20891, and are suitable for industrial and mining enterprises, government offices and schools, post and telecommunications, border defense camps and other departments and units as conventional power supply or backup power supply.

Technical parameters of generator set:
Model: ZC1100GF1
Main power (kW)	800kw		Standby power (kW)		880kw
Unit current	1440		Power factor		COSΦ=0.8 (hysteresis)
Rated voltage (V)	400/230		Rated frequency		50HZ
Speed	1500		Wiring type		Star type (Y three-phase four-wire, 12-wire)
Dimensions (mm)	4100*1830*2250		Weight		8000kg
Noise	≤103dB（A）		Unit Type		Open Frame
■Model Introduction: YC6TH series engine adopts electronically controlled single pump, high-strength cylinder block, forged composite Gold steel crankshaft, alloy steel connecting rod and efficient cooling and lubrication system and other technologies; high reliability, durability, low fuel consumption, low noise, low maintenance cost and other characteristics. It is an ideal supporting power for main or backup emergency power supply in high-end commercial centers, airports, large hospitals, high-tech manufacturing industries, communications industries and other places. ■Model Features · Four-valve design, sufficient intake volume, medium-cost fuel injector, more complete oil and gas mixing, more complete combustion. · Mature supercharging and intercooling technology ensures sufficient and stable intake volume for each load, and economic fuel consumption in the working area. · High injection pressure, good atomization, full combustion, high power density, small size and light weight. · National III stage emission, electronically controlled single pump technology, great emission upgrade potential. · V-shaped cylinder block with mesh reinforcement rib structure, crankshaft connecting rod of high-strength alloy, high reliability. · Good parts versatility, high degree of serialization, one cylinder and one head structure, low comprehensive maintenance cost. · World-class equipment and technology production, stable and reliable quality. · Product performance meets the G3 performance level requirements in GB2820, and emissions meet the requirements of GB 20891 National III (T3). · Electric fuel drain, water-cooled exhaust pipe, support dual energy start.
Diesel engine technical parameters:
Model		YC6TH1320-D31		Origin		Yulin, Guangxi
Normal power		880kw		Standby power		968kw
Type		Vertical, inline, water-cooled, four-stroke		Air intake		Supercharged intercooler
Compression ratio		15:1		Total displacement (L)		28.14
Fuel system		Electronically controlled unit pump		Starting method		Electric starter
Cylinder-bore x stroke (mm)		6-175X195		Minimum fuel consumption (g/kW.h)		≤202
Generator technical parameters:
Brand/Origin		Deke/Anhui		Motor model		Deco 800
Protection level		IP23		Insulation level		H level
Rated power		800KW		Voltage control mode		AVR (Automatic Voltage Regulator)
Excitation mode		Brushless self-excitation type		Winding temperature rise		＜125K (resistance method)
Steady-state voltage regulation rate		≤±1%		Voltage adjustment range		＞±10%Un
Overload capacity		100%/1h		Overcurrent capacity		150%/2min
Recovery time		≤1s		Volatility		≤±1%
Control panel:
Brand		Zhongzhi
